Amprobe AMP-220 600A AC/DC TRMS Clamp Meter

(24 customer reviews)

  • Measures AC/DC Current to 600 A and AC/DC Voltage to 600 V
  • Features True-RMS sensing for accurate voltage measurements in noisy electrical environments
  • Amp-Tip delivers precise low AC current measurements – 0 to 60 A
  • Includes a low pass filter to accurately measure voltage and current on variable frequency drives
  • Capacitance measurement, continuity beeper and diode test
  • Provides resistance and continuity measurement capabilities to verify the quality of electrical connections and the proper operation of motor and transformer coils
  • Offers data hold and relative zero for quick analysis
  • Maximizes battery life with auto power off and low battery indicator
  • Backlit display for easy measurement viewing in bright and dim environments
  • Accommodates conductors up to 1.37 in (35 mm)
  • CAT III 600 V safety rated

SKU: 4560543 Category:

Description

With a full range of AC/DC current, AC/DC voltage, and frequency measurement functions for basic electrical troubleshooting, the AMP-220 clamp meter with its large backlit display is an excellent amp clamp meter choice. Rated CAT III 600 V, the AMP-210 clamp meter offers True-RMS sensing, fast response processor, non-contact voltage detection, capacitance, resistance and continuity measurements to enhance efficiency and safety in today’s complex electrical environments. The Amp-Tip function allows for precise measurement of current down to the tenth of an Amp, enabling accurate current measurement of both large and small diameter wires. A low pass filter allows measurement of current and voltage on variable frequency drives (motors with speed controlled by frequency).



Additional information

Safety Rating

CAT III 600 V
True-rms

•
AC Voltage (V)

600 V
DC Voltage (V)

600 V
AC Current (A)

600 A
DC Current (A)

600 A
Resistance

•
Capacitance

•
Frequency (Test Leads)

•
Frequency (Jaw)

•
Relative Zero

•
Diode Test

•
Continuity Beeper

•
Non-Contact Voltage

•
Autoranging

•
Inrush Current

•
Backlight

•
Data Hold

•
Auto Power-Off

•
MAX

•
MIN

•
Low Pass Filter

•

Specifications

FEATURE AMP-210 AMP-220 AMP-310 AMP-320 AMP-330
AC voltage (True-rms) Range: 0 to 600.0 V 0 to 1000.0 V
Accuracy: ±1.0% + 5LSD (50 to 60 Hz) ±0.8% + 5LSD (50 to 60 Hz)
DC voltage Range: 0 to 600.0 V
Accuracy: ±1.0% + 5LSD
AC+DC voltage Range: – 0 to 600.0 V – 0 to 600.0 V 0 to 1000.0 V
Accuracy: – ±1.2% + 7LSD (50 to 60 Hz) – ±1.2% + 7LSD (50 to 60 Hz) ±1.0% + 7LSD (50 to 60 Hz)
±1.8% + 7LSD (DC 40 to 200 Hz)
±1.2% + 7LSD 200 to 400 Hz)
AC current Range: 0 to 600.0 A
Accuracy: ±1.8% + 5LSD (50 to 60 Hz)
±2.0% + 5LSD (100 to 400 Hz)
DC current Range: – 0 to 600.0 A – 0 to 600.0 A 0 to 1000.0 A
Accuracy: – ±2.0% + 5LSD (DC 50 to 100 Hz) – ±2.0% + 5LSD (DC 50 to 100 Hz) ±1.8% + 5LSD (DC 50 to 100 Hz)
AC+DC current Range: – 0 to 600.0 A – 0 to 600.0 A 0 to 1000.0 A
Accuracy: – ±2.2% + 7LSD (DC 50 to 100 Hz)
±2.7% + 7LSD (100 to 400 Hz)		 – ±2.2% + 7LSD (DC 50 to 100 Hz)
±2.7% + 7LSD (100 to 400 Hz)		 ±2.2% + 7LSD (40 to 100 Hz)
±2.5% + 7LSD (100 to 400 Hz)
Precise low current AC Range: 0 to 60.00 A
Accuracy: ±1.5% + 5LSD (50 to 60 Hz) ±1.5% + 5LSD (50 to 60 Hz)
±2.0% + 5LSD (0.00 to 20.00 A, 100 to 400 Hz)
±3.0% + 5LSD (>20.00 to 60.00 A, 40 to 100 Hz)
±3.0% + 5LSD (>20.00 to 60.00 A, 100 to 100 Hz)
Precise low current DC Range: – 0 to 60.0 A – 0 to 60.0 A 0 to 60.00 A
Accuracy: – ±2.0% + 5LSD – ±2.0% + 5LSD ±1.5% + 5LSD (0.00 to 20.00 A)
±3.0% + 5LSD (>20.00 to 60.00 A)
Micro amps Range: – – 0 to 2000 µA
Accuracy: – – ±1.0% + 5LSD
Frequency Range: 5.00 to 999.9 Hz
Accuracy: ±1.0% + 5LSD (600 V range)
Range: 50.0 to 400.0 Hz
Accuracy: ±2.0% + 4LSD (600 A range)
Resistance Range: 0.0 to 60.00 kΩ
Accuracy: ±1.0% + 5LSD
Capacitance Range: 0.0 to 2500 µF
Accuracy: ±2.0% + 4LSD
Continuity beeper ON ≤ 10 Ω
Off > 250 Ω
Temperature*
(Type K thermocouple)		 – – -40.0 to 752 °F
-40.0 to 400 °C
– – ±1.0% + 3.0 °F (-40.0 to 14.0 °F)
±1.0% + 1.5 °F (>40.0 to 99.9 °F)
±1.0% + 2.0 °F (100 to 752 °F)
±1.0% + 1.5 °C (-40.0 to 10.0 °C)
±1.0% + 0.8 °C (>-10.0 to 99.9 °C)
±1.0% + 1.0 °C (100 to 400 °C)
Non-contact voltage 10 V to 1000 V AC (50 to 60 Hz)
Phase rotation indication – – Rotation-R for main supply
Rotation-M for motors
Diode test • • • • •
Jaw opening 1.18 in (30 mm) 1.37 in (35 mm) 1.18 in (30 mm) 1.37 in (35 mm) 2.0 in (51 mm)
Safty rating CAT III 600 V CAT IV 600V
CAT III 1000 V
Special Features
In-rush current – • • • •
Peak hold (Crest) – – – – •
Relative zero • • • • •
Max/Min/Avg • • • • •
Data hold • • • • •
Backlight • • • • •
Auto power off • • • • •
Work light – – – – •

*Error does not include Type-K thermocouple errors

Videos

AMP-200/300 Series

Learn about the AMP 200 and 300 Series Motor Maintenance Clamps.

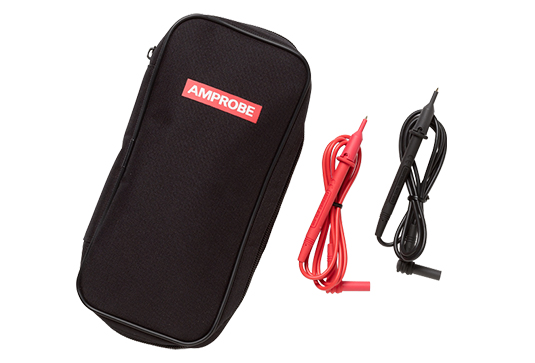

What’s Included

  • AMP-220
  • Test Leads
  • (2) AAA Batteries (installed)
  • Carrying Case

Resources

Datasheet »
Product Manual »

24 reviews for Amprobe AMP-220 600A AC/DC TRMS Clamp Meter
