Description
Without interrupting power, the Amprobe AT-2004 Wire Tracer can trace live wires buried or hidden behind walls up to 13 feet deep.
Amprobe AT-2004 Advanced Wire Tracer
- Traces live wires buried or hidden behind walls up to 13 feet deep
- Traces de-energized and open (broken) wires
- Performs tests without having to interrupt power
- Locates breakers, neutral and ground lines
- Locates and traces wires in walls, floors, conduit, computer cables, etc.
- Pinpoints shorts, ground faults and broken wires
- Does not interfere with sensitive electronic equipment
Specifications
| FEATURE | AT-2004 | AT-2005 |
| Traces energized wires without power interruption. Locates breakers without power interruption. | • | • |
| Traces unenergized wires (wire continuity and wire grounded at the end). Pinpoints shorts ground faults. | • | • |
| Traces unenergized open wires (broken or disconnected wire). Pinpoints place where wire is broken. | • | • |
| Supplied with clamp-on attachment to inject signal without making a contact with bare wire. | • | • |
| Supplied with battery. Booster to strengthen signal for open tracing. | – | • |
| KIT CONTAINS: | AT-2004 | AT-2005 |
| R-2000 Receiver | • | • |
| S-2600 Transmitter 9-600 V | • | • |
| T-2200 Transmitter for open tracing | • | • |
| A2201CE Clamp-on transmitter accessory | • | • |
| B2024 Rechargeable battery pack | – | • |
| B2025 Battery pack recharger | – | • |
| C2901 Cordset 110 volt plug to banana plugs | • | • |
| C2902 Cordset alligator clips to banana plugs | • | • |
| Users manual | • | • |
| Specifications | |
| Traces energized wires without power interruption: | 9-600V (S2600 Transmitter) |
| Locates breakers without power interruption: | 9-600V (S2600 Transmitter) |
| Traces unenergized wires (wire continuity and wire grounded at the end): | S2600 Transmitter and 9V batteries |
| Pinpoints shorts and ground faults: | S2600 Transmitter and 9V batteries |
| Traces unenergized open wires (broken or disconnected wire): | T2200 Transmitter |
| Pinpoints place where wire is broken: | T2200 Transmitter |
| Supplied with clamp-on attachment to inject signal without making a contact with bare wire: | YES |

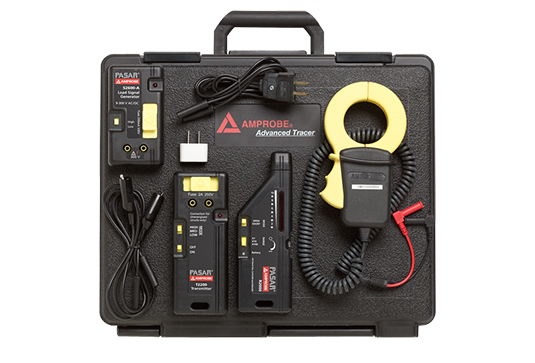

What’s Included
- R-2000 Receiver
- S-2600 Transmitter 9-600 V
- T-2200 Transmitter (for open tracing)
- A-2201CE Clamp-on attachment
- C2901 Cordset 110 Volt Plug to Banana Plugs
- C2902 Cordset Alligator Clips to Banana Plugs
Resources
| Product Manual » |
Sparky –
This product has all the features I needed to trouble shoot.
This product is all I need to trace live circuits and de-energized
circuits. It also is great for locating grounds, shorts and opens
in many situations.
✔ Yes, I recommend this product.
JFME –
Great product
If you need to find a wire underground, in a wall, on a breaker, this tracer can do it.
✔ Yes, I recommend this product.
Hannah –
This tracer has many uses
The Amprobe AT-2004 Advanced Wire Tracer is a versatile tool., with clear instructions inside the case .I was able to easily trace a residential undergound branch circuit while energized. It was also used to trace a residental undergound natural gas line that had a copper conductor tracer.
Tracing of commercial branch circuits installed in raceways to locate source breaker can be accomplished after a little practice to discern signal strength and receiver settings. A short learning curve here, as always with new instruments.
The instrument was used effectively in a training session with experienced electricians to locate open and grounded conctuctors.
✔ Yes, I recommend this product.
Doug57 –
This product has the best features for my needs!
I’m currently doing remodel work in a Hospital. It is essential not to interrupt power at anytime. with this tool I accomplish the task!
✔ Yes, I recommend this product.
Marty1940 –
Purchased in 1997, still using, outlasted most of my men who could break anything.
I needed a tracer to locate underground PVC enclosed service cables. There was very little allowance for error due to close proximity of gas and communication lines. Needless to say now, I found the service lines without damaging other close conduits.
That project itself paid for the tracer. Since than I have employed the tracer ( live and dead circuits) at least once a week. It never fails to render excellent results.
We had a project to install separate meters for a 1100 unit apartment project. In each of 50 buildings the units were served from a panel with 60/2 mains for each unit. We had to do the tracing live without disturbing the tenants. Out of the 1100 units I made 2 errors which I admit were my mistakes.
In finishing this effort to win an Amprobe product, before I purchased the AT-2004 I tried competitors products, they did not come close at twice the price. Of course, I could have paid a great deal more for one that equaled Amprobe, but what for.
✔ Yes, I recommend this product.
14theroad –
Used sucessfully for almost a decade
I have used this tracer to locate shorts, opens, and identify circuits for almost ten years. It is a valuable piece of equipment to have on the truck.
✔ Yes, I recommend this product.
sabar –
Fast & effective
This product is all I need to trace live circuits and de-energized circuits. It also is great for locating grounds, shorts and opens in many situations., burried conduits great product.
✔ Yes, I recommend this product.
mikeiver –
Great diagnostic tool
I had a CT-100 that I used for some time but needed the extra features offered by the AT-2004 kit. I finally broke down and bought one. This is one of the very best buys I have made. It has allowed me to locate breaks and shorts in wires as well as trace wires in walls to locate. I have even used it to locate buried wires in conduit at a depth of 5+ feet. This surprised the other electrician and myself and further sold me on the utility of this kit and the wisdom of the purchase! I run one of the service trucks and use this at least once a week if not more. It saves me time and the customer money. It is also conformation that the customer has hired a professional and not just a hack. Get this tool and learn how to use it, you will not be sorry.
✔ Yes, I recommend this product.
