Amprobe AT-6020 Advanced Wire Tracer Kit 4

Amprobe AT-6020 Advanced Wire Tracer Kit

(2 customer reviews)

  • Traces wires in walls, ceilings, floors and corners
  • Locates breakers and fuses
  • Pinpoints shorts and opens
  • High resolution 2.5″ TFT LCD color display
  • Three Transmitter signal modes
    • “High Signal” mode for normal circuits
    • “Low Signal” mode for precision tracing in difficult areas
    • “Loop” mode for closed loop de-energized circuits
  • Four Receiver tracing modes
    • “Quick Scan” mode allows for quick wire detection at a longer distance
    • “Precision” mode precisely pinpoints wires or faults located behind walls, floors, or ceilings
    • “Breaker Identification” mode facilitates quick and easy breaker locating
    • “Non-Contact Voltage Detection” mode utilizes passive tracing without the Transmitter to verify if a wire is energized
  • Two automatically selected frequency modes for reliable tracing on energized and de-energized circuits
  • Comes with custom Amprobe hard carrying case, test leads, and accessories
  • Compatible with optional Signal Clamp (CT-400) clamp-on attachment and TIC 410A Hot Stick attachment to extend your reach

SKU: 4867981 Category:

Description

Amprobe’s newest wire tracer combines a Receiver and powerful Transmitter to locate energized and de-energized wires, breakers, and fuses without having to disconnect any equipment. The Receiver features four tracing modes optimized for a range of applications. Its fully automatic breaker tracing capability saves time and eliminates the confusion of multiple false positives by detecting the highest recorded signal in a breaker or fuse. The Transmitter utilizes two optimized frequencies that allows for a clean and reliable signal. The Signal Clamp can be used in applications where there is no access to bare conductors by enabling the Transmitter to induce a signal into a wire through insulation. Whether you’re a novice user or an expert, the AT-6000 Amprobe Advanced Wire Tracer kit will help you get the job done fast.

Additional information

Measurement Category

CAT III 600 V
Traces energized and de-energized wires

•
Locates energized and de-energized breakers and fuses

•
Receiver "Breaker Identification" mode

•
Finds shorts and opens

•
Transmitter "Loop" mode

•
Non-contact voltage detection

•
Two frequency modes

•
Transmitter Operating Voltage

0 to 600 V AC/DC
Receiver Display

Color 2.5" LCD
Rechargable Batteries

–
Signal clamp attachment

Optional
Demo-Request-URL

https://e.amprobe.com/AMP-NA-AMPROBE-2019-DemoContactRequest-USEN-LP-2-A?lcid=52a6279f-baab-e311-bf9f-a4badb1ddeb4&utm_campaign=GenericDemoRequest&utm_source=www.Amprobe.com&lls=200013&lpid=080e880a-7fc3-e011-b2b0-a4badb1ddec7&llr=1&plt=100000001&redir=https://amprobe.com/thanks-for-your-interest/&scl=953

Specifications

AT-6000-R Receiver AT-6000-T Transmitter CT-400 Signal Clamp
Measurement Category CAT III 600 V CAT III 600 V CAT IV 600 V, CAT III 1000 V
Operating voltage 0 to 600 V AC/DC 0 to 600 V AC/DC 0 to 1000 V AC
Operating frequency Energized: 6.25 kHz
De-Energized: 32.768 kHz		 Energized: 6.25 kHz
De-Energized: 32.768 kHz		 Wire tracing: 32.768 kHz
AC current measurement: 45 Hz to 400 Hz
Hazardous voltage detection See NCV detection > 30 V AC/DC N/A
Signal indications Numeric, bar graph display and audible beep LEDs and audible beep N/A
Response time Tip Sensor (energized/de-energized): 500 MS
NCV: 500 MS
Battery voltage monitoring: 5 sec		 Line voltage monitoring: 1 sec
Battery voltage monitoring: 5 sec		 Instantaneous
Current output of signal (typical) N/A Energized circuit:
HI mode: 60 mA RMS
LO mode: 30 mA RMS
De-energized circuit:
HI mode: 130 mA RMS
LO mode: 40 mA RMS
Loop mode: 160 mA RMS		 1 mA/A for AC current measurement with multimeter
Signal voltage output (nominal) N/A De-energized circuit:
LOW: 29 V RMS, 120 Vp-p
HIGH: 33V RMS, 140 Vp-p
With CT-400:
loop model: 31 V RMS, 120 Vp-p		 De-energized circuit:
2.4 V RMS, 24 Vp-p
Range detection (open air) Tip sensor (Energized):
Max distance via air: up to 20 ft (6.1 m)
Pinpointing: approx. 1.97 in (5 cm)
Tip sensor (De-energized):
Max distance via air: up to 14.7 ft (4.5 m)
Pinpointing: approx. 1.97 in (5 cm)
NCV detection (40 to 400 Hz):
Max. sensitivity: 90 V up to 6.56 ft (2 m)
Min. sensitivity: 600 V up to 0.39 in (1 cm)		 N/A N/A

Videos

AT-6000 How to Find Breaks, Opens and Shorts

Identify the specific location of a fault.



AT-6000 How to Trace Wires in Metal Conduit

Move from junction box to junction box to follow the path of the wire.



AT-6000 How to Trace Wires

Trace Energized and De-energized wires.



AT-6000 How to Use the Signal Clamp

Induce a signal into a wire through insulation.



AT-6000 Breaker Identification

The Receiver clearly identifies the correct breaker every time.



AT-6000 Overview

Easy to use, the most advanced wire tracer in it’s class.

What’s Included

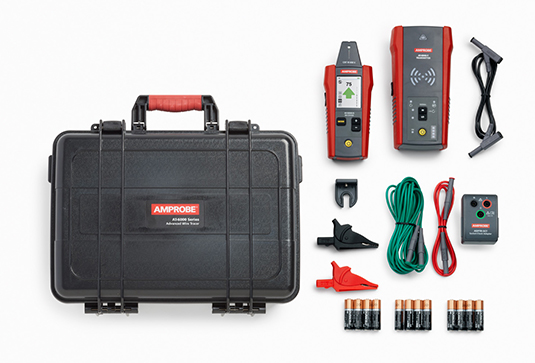

AT-6020 kit AT-6030 kit
AT-6000-R Receiver • •
AT-6000-T Transmitter • •
TL-6000 Test Lead and Accessory Kit • •
CC-6000 Hard Carrying Case • •
User Manual • •
1.5 V AA (IEC R6) Batteries (12) (not installed) • –
Rechargeable Batteries (12) (not installed) – •
Battery Chargers (3) – •
CT-400 Signal Clamp – •

Resources

Datasheet »
Product Manual »
Quick Start Guide »
