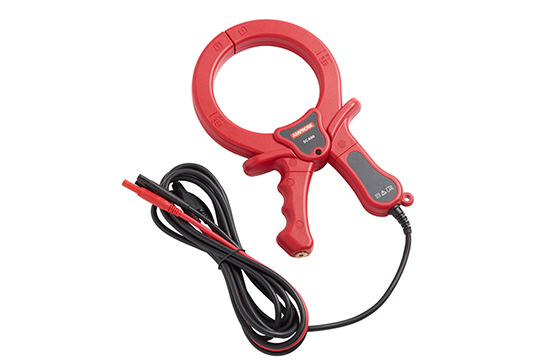

Amprobe SC-600 Signal Clamp

  • Provides an efficient and safe method of applying a locate signal to a cable
  • Enables the Transmitter to induce a signal through the insulation into wires or pipes
  • Works on low impedance closed circuits only
  • For use with Amprobe’s UAT-600 Underground Utility Locator Series – included with the UAT-620 kit
SKU: 4994479 Category:

Description

In many situations, it is either not possible to gain access to a cable for making an electrical contact or it is not safe to do so. The SC-600 Signal Clamp accessory provides an efficient and safe method of applying a locate signal to a cable, enabling the UAT-600 Transmitter to induce a signal through the insulation into the wires or pipes. The clamp works on low impedance closed circuits only.

The SC-600 is included with the UAT-620 Underground Utilities Locator kit.

CAT II 600VCE Certification RCM Certification

Specifications

Features SC-600 Signal Clamp
Measurement category CAT IV 600 V
Operating voltage/current 0 to 600 V, 100 A max.
Operating frequency/tracing modes 33 kHz and 8 kHz
Signal voltage output (nominal) 23 V rms at 8 kHz
30 V rms at 33 kHz
Operating temperature and humidity -4 °F to 122 °F (-20 °C to 50 °C), ≤90% RH
Storage temperature and humidity -40 °F to 140 °F (-40 °C to 60 °C), ≤90% RH
Operating altitude < 6561 ft (< 2000 m)
Pollution degree 2
Water and dust resistance IP54
Drop proof 3.28 ft (1 m)
Agency approval CAT II 600VCE Certification RCM Certification
Safety compliance IEC 61010-1, IEC 61010-2-033
CSA/UL 61010-1, CSA/UL 61010-2-033
Size (H x W x L) Approx. 11.6 x 7.1 x 1.4 in (295 x 180 x 37 mm)
Weight Approx. 1.9 lb (0.85 kg)



Videos

UAT-600 Series Overview

Accurately and safely pinpoint underground utilities before you dig.

What's Included

  • SC-600
